Item |
Specifications |
||
Engine |
Model
|
SC11CB240,1G2B1
|
|
|
Type
|
Water cooling,4xstrokes
|
||
|
Air breathing
|
Thrbo-changed
|
||
|
Number of cylinders
|
6
|
||
|
Bore
|
120mm
|
||
|
Piston dispiacement
|
10.5l
|
||
|
Governor
|
Electronic variable-speed governor
|
||
|
Power
|
175kw(240hp)
|
||
|
Rated speed
|
2200rpm
|
||
|
Fuel system
|
Direct injection
|
||
|
Maximum torque
|
950Nm/1400rpm
|
||
|
Lubrication system
|
Gear pump forced lubrication
|
||
|
Filter
|
Full-flow type 1
|
||
|
Air filter
|
Dry(double filter elements with dust exhanst and indicator)
|
||
Gearbox |
Hydraulic torque converter
|
type
|
Single stage,single phase,three-components
|
|
|
types
|
Fixed shaft drive shifting
|
|
|
|
|
km/h(Galculated on the tire 29.5R25)
|
|
|
|
|
Gear 1(Forward/Rearward) 6/6
|
|
|
Gearbox
|
|
Gear 2(Forward/Rearward) 11/11
|
|
|
|
Travel speed
|
Gear 3(Forward/Rearward) 22/22
|
|
|
|
|
Gear 4(Forward/Rearward) 34/34
|
|
Axle and main drive |
Drive system
|
4 WD
|
|
|
Front wheels
|
Fixed
|
||
|
Rear wheels
|
Oscillating axle,±12º swing
|
||
|
Reduction gear
|
Spiral bevel gear
|
||
|
Differential gear
|
Common gear
|
||
|
Final drive
|
Planetary gear,1st class speed reduction
|
||
Brake |
Service brake
|
Gas cap oil disc brake(4W)
|
|
|
Parking brake
|
Drum type brake
|
||
|
Emergency brake
|
With parking brake as dual purpose
|
||

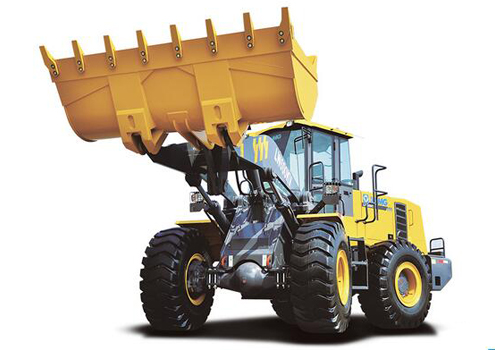

LW600KN
